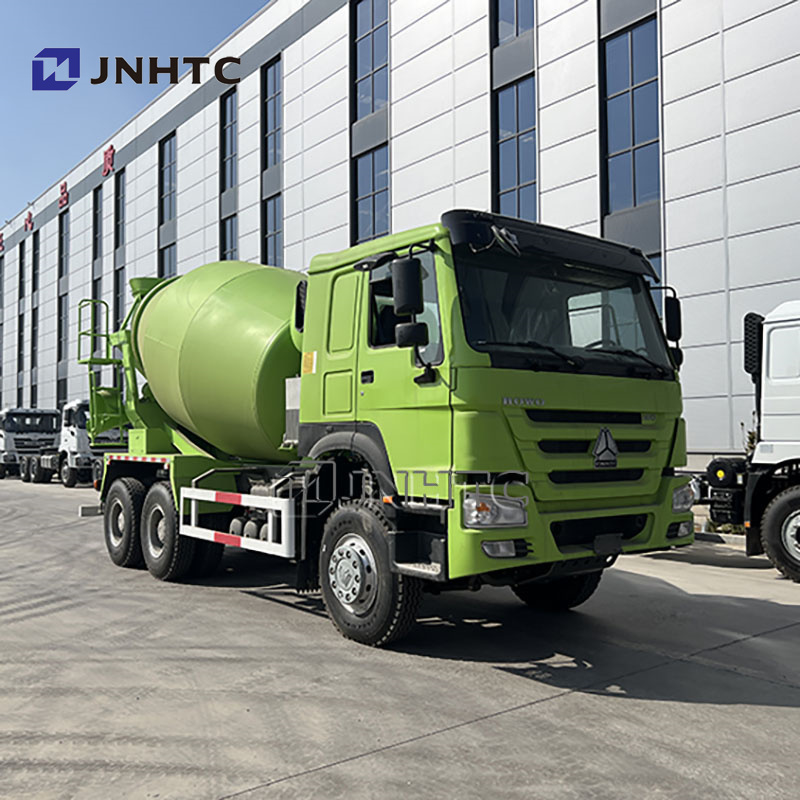

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

認証
中国 Jinan Heavy Truck Import & Export Co., Ltd. 認証
中国 Jinan Heavy Truck Import & Export Co., Ltd. 認証
顧客の検討
それは、人に非常に類似した気分が良いです!

—— Hafizアーメド

お金、時間およびエネルギーを節約するためにあなたの会社と働かせて下さい。

—— Zahidモハメッド

あなたの継続的サポートをありがとう、過去6yearsを整備して下さい。

—— デーブBalah

適正価格の質のベストおよび専門職業的業務は私達に長期協同を造るために深い信任を与えます。

—— Jayson Kan

販売のサービスおよび質の後でよい

—— Mahanmdスティーブ

オンラインです

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks
SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

大画像 :  SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

商品の詳細:
起源の場所: 中国
ブランド名: Sinotruk Howo
証明: ISO CCC
モデル番号: ZZ1257N4047W
お支払配送条件:
最小注文数量: 1 ユニット
価格: $46500 unit
パッケージの詳細: ヌードなし
受渡し時間: 30日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 1ヶ月あたりの100単位

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

説明
駆動輪: 6x4 燃料の種類: ディーゼル
条件: 新品 車両総重量: 25000
馬力: 380hp 排出基準: ユーロ2
トランスミッション: HW19710 色: 顧客からの要求
ハイライト:

SINOTRUK HOWO concrete mixer truck

,

6x4 hydraulic concrete mixer

,

8CBM diesel mixer truck

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks

1. products description

Product Parameter
More parameters
Brand Name
SINOTRUK –HOWO
more
Truck Model
ZZ1257N3841W
/
Geometric Volume
8CBM
6,8,9,10,12,14,16,18
color
option
option
Water Tank Volume(L)
400
Water Tank Volume(L)
Engine
WD615.47, Euro 2
Euro 3 ,Euro 4,Euro 5
Wheel base (mm)
3800+1350
customization
Overall Dimension (mm)
8560x2496x3048
customization
Clutch
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission
HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle
New HF9 series, with drum brake system
Rear Axle
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering
ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Wheels&Tyres
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab
HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
conditioner
Cargo body
American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color
consistent with the cab, front and rear lamp cover, other standard

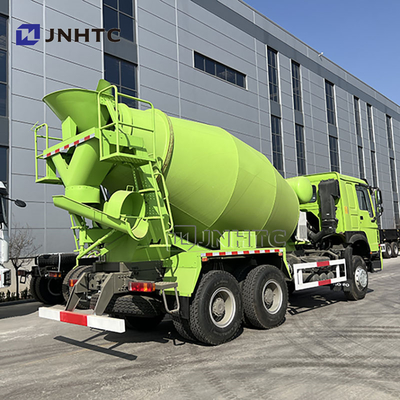

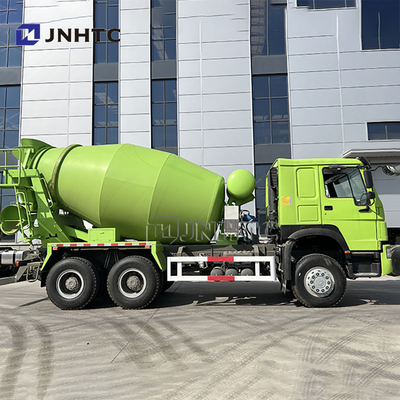

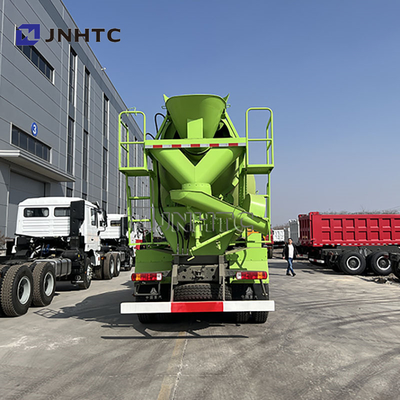

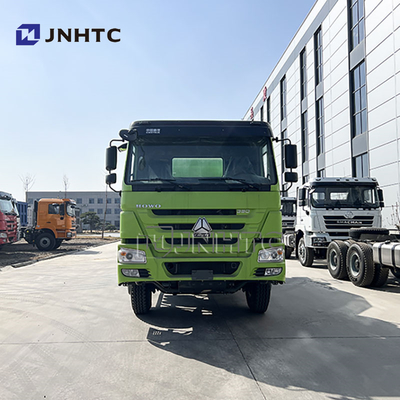

2. Products show



Mixer truck is a special vehicle used for transporting and mixing concrete, which is usually composed of a

mixing cylinder, a drive system, a feeding and unloading device. The mixer drum is the core part of the mixer,

which is equipped with spiral blades, which can constantly mix concrete during transportation to prevent

concrete from solidifying. The feed port of the mixer is usually located at the top, and the discharge port is

located at the rear, and the discharge can be achieved by controlling the opening and closing of the discharge

door. The mixer is widely used in construction sites, road construction and other fields, it can transport concrete

from the mixing station to the construction site, and ensure the quality and uniformity of concrete. Some mixers

may also be equipped with remote controls or other control devices that allow the operator to take control away

from the vehicle.



SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 0SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 1SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 2SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 3SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 4





3. Customer visit

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 5

4. Company Profile

SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 6SINOTRUK HOWO 6X4 8CBM Meters Diesel Engine Hydraulic Concrete Mixer Trucks 7
