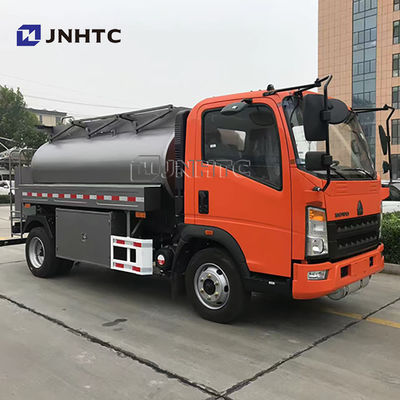

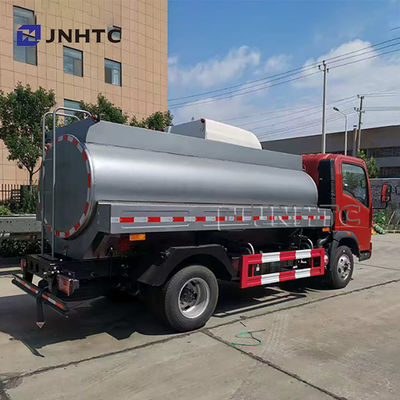

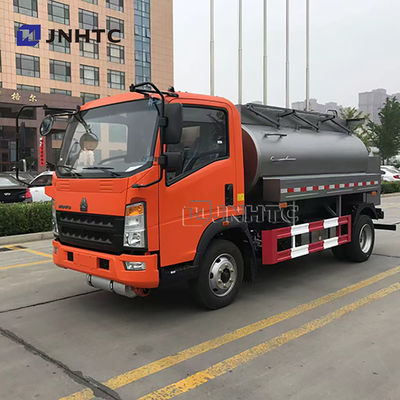

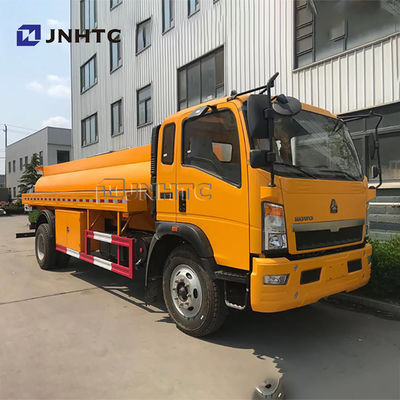

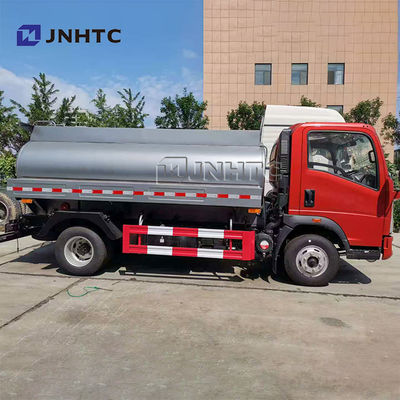

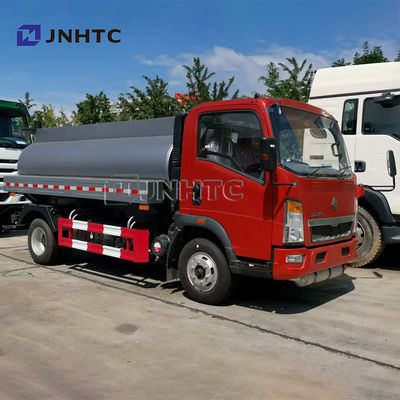

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

認証
中国 Jinan Heavy Truck Import & Export Co., Ltd. 認証
中国 Jinan Heavy Truck Import & Export Co., Ltd. 認証
顧客の検討
それは、人に非常に類似した気分が良いです!

—— Hafizアーメド

お金、時間およびエネルギーを節約するためにあなたの会社と働かせて下さい。

—— Zahidモハメッド

あなたの継続的サポートをありがとう、過去6yearsを整備して下さい。

—— デーブBalah

適正価格の質のベストおよび専門職業的業務は私達に長期協同を造るために深い信任を与えます。

—— Jayson Kan

販売のサービスおよび質の後でよい

—— Mahanmdスティーブ

オンラインです

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter
New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

大画像 :  New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

商品の詳細:
起源の場所: ジーナン,中国
ブランド名: Sinotruck HOWO
モデル番号: zz41551N3846
お支払配送条件:
最小注文数量: 1ユニット
価格: USD 41200~46500 PER UNITS
パッケージの詳細: ヌード
受渡し時間: 20~25仕事日
支払条件: L/C、D/A、D/P、T/T
供給の能力: 週に50ユニット

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

説明
タンクボリューム: 15001-30000L 燃料タイプ: ディーゼル
状態: 新しい 馬力: 251~350馬力、351~450馬力
ストレージ: 油、水、LPG エンジン容量: 9.726L
色: オプション 排出基準: ユーロ2/3/4/5
ハイライト:

SINOTRUK HOWO refueling truck with flow meter

,

10 Cbm fuel tank truck Euro2

,

10000L refueling truck with warranty

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter

Product Name
SINOTRUK HOWO 4x2 Oil Tank Truck 20CBM
Chassis Model
ZZ1257N4341W
Driving Type
LHD (RHD is optional)

Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with
three speeds, damped adjustable driver's seat, with heating and ventilating system,
exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner,
with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R speeds , with PTO
Steering
ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle
HF9,1x9000 KGS
Steering with double T-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential
locks between wheels and axles.
Ratio:4.8 / 5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8mm,reinforced
Sub-frame all cold riveted cross members Front suspension:10 semi elliptic leaf
spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
295/80R22.5, tubeless tyres with one spare tyre, 12.00R20 radial tire for option
Fuel Tank
400L
Oil Tank Body
20 Cubic Meters, can be customized



New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 0

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 1New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 2New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 3New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 4New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 5New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 6

Oil tank trucks, also known as mobile refueling trucks, computerized tax controlled refueling trucks, oil tanker

trucks, oil loading trucks, oil transport trucks, oil transport vehicles, edible oil transport vehicles, are vehicles

that transport and store petroleum derivatives (gasoline, diesel, crude oil, lubricants, coal tar and other oil

products).
Transportation medium: Suitable for transporting liquid substances such as alcohols, aldehydes, benzene,

ethers, etc. in gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non petroleum

products.
The tank body is made of high-quality 4-6 mm thick carbon steel national standard plates, which can be made

of carbon steel or stainless steel. Aluminum alloy, pure aluminum tanks, lined with rubber, plastic tanks, and

fiberglass tanks can also be used as needed;
Can types include square circular, elliptical, and circular;
Oil pumps include self priming pumps, gear pumps, and dual pumps;
Can be designed as a specialized chemical transportation vehicle;
It can be independently divided into warehouses and packaged with different types of oil products. It can achieve

pump in and pump out, self flow, optional flow meter, computer-controlled fuel dispenser, 15 meter refueling reel

(automatic return), and multiple anti wave partitions inside the tank, making the tank strong, stable in center of

gravity, and safe and stable in vehicle transportation.
All oil tank trucks can be designed as chemical trucks and various heating and insulation series tank bodies; All

oil tankers can be equipped with computer fuel dispensers; Wide range of tonnage selection for households to

meet user needs; There are multiple wave barriers inside the tank. By using high-pressure gas leak testing, the

tank body is characterized by high strength, stable center of gravity, and safe and stable vehicle transportation.

New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 7



New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 8New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 9New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 10New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 11New SINOTRUK HOWO 4*2 Euro2 10 Cbm 10000L Refueling Truck With Flow Meter 12
